Why Pixels and Neurons Share the Same Math
A CPU is built for speed on a single task: take an instruction, execute it as fast as possible, move to the next. Modern CPUs might have 16 or 32 cores, each capable of complex branching logic and rapid context-switching. That architecture is perfect for your operating system or a web server — workloads made of thousands of different tasks arriving in unpredictable order.
Training a neural network looks nothing like that. At its core, deep learning is dominated by one operation repeated billions of times: the matrix multiplication. You take an enormous grid of numbers — the model's weights — and multiply it against another enormous grid of input data, summing the results into outputs that flow to the next layer. There is no complex branching. There is no unpredictable logic. It is the same arithmetic, over and over, across arrays that can contain hundreds of billions of values.
A GPU was designed to do exactly this for pixels. Rendering a 3D scene means applying the same shading calculation to millions of triangles simultaneously — identical math across a massive, independent array. So GPU architects built chips with thousands of smaller, simpler cores optimized for throughput: get through as many parallel operations per second as possible, even if each individual core is slower than a CPU core. The tradeoff — high throughput over low latency — turns out to be precisely what large-scale AI training demands.
When researchers at the University of Toronto demonstrated in 2012 that a deep neural network trained on GPUs could dramatically outperform everything else on the ImageNet benchmark, they weren't using exotic hardware. They were using gaming GPUs. The math just fit.
The math just fit.
From Gaming Card to Training Cluster
The decade that followed was a story of deliberate adaptation. GPU makers began adding features the gaming world never asked for: larger, faster on-chip memory; dedicated matrix-multiply units (NVIDIA calls theirs Tensor Cores) that can execute the specific arithmetic of deep learning far more efficiently than general-purpose shader cores; and interconnects capable of linking multiple GPUs into a unified computational surface. A modern AI-oriented GPU is physically recognizable as a descendant of the gaming card but is engineered almost entirely around the needs of model training and inference.
Memory is a central battleground. Matrix multiplications are memory-bandwidth-hungry: the processor needs to stream enormous weight arrays in and out constantly. This drove the industry toward High Bandwidth Memory — a stacked DRAM architecture that places stacked memory dies beside the logic die on the same package, shortening the interconnect and dramatically widening the data bus. The bandwidth figures involved are an order of magnitude beyond what a typical CPU sees from its system RAM.

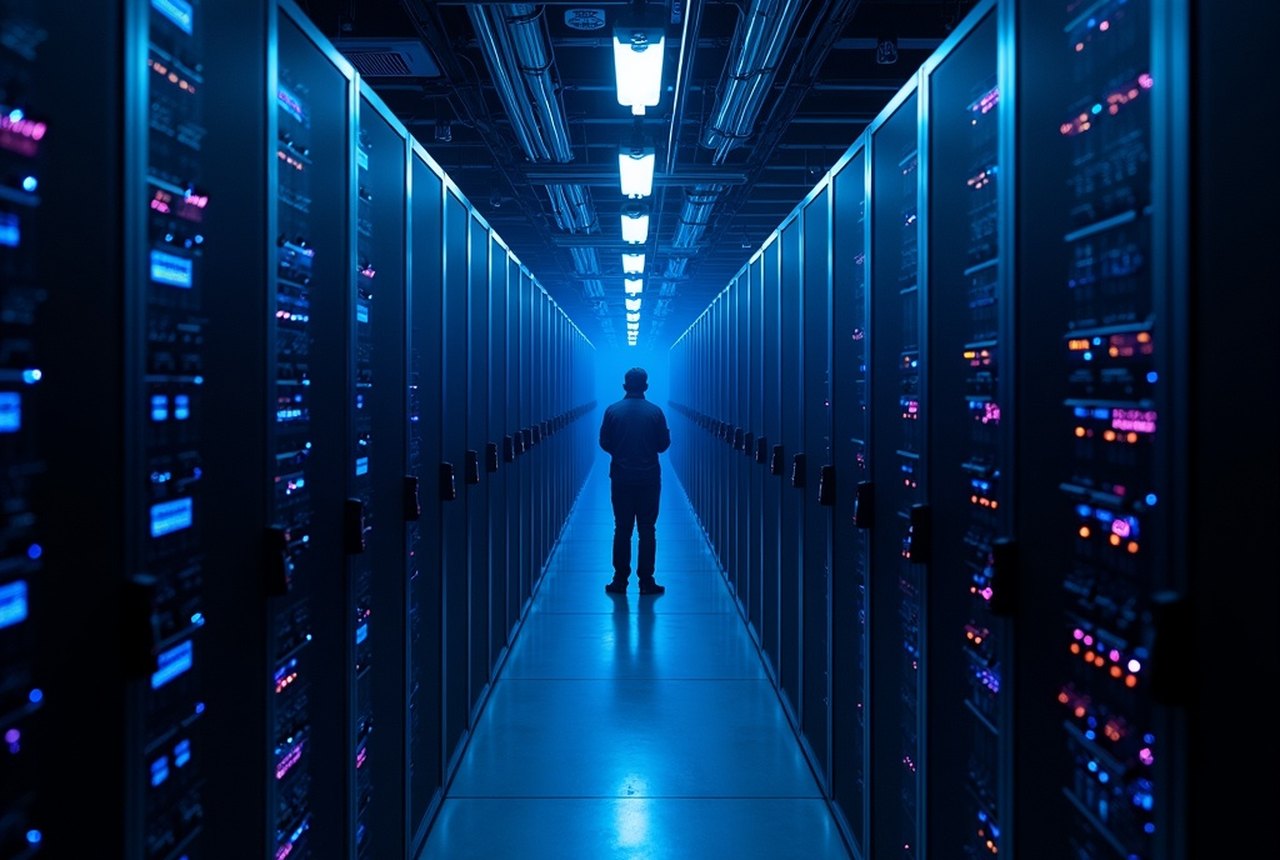

As models grew from millions to hundreds of billions of parameters, single GPUs became insufficient. Training a large language model today means assembling a training cluster: thousands of accelerators wired together across a high-speed fabric — typically InfiniBand or increasingly Ethernet-based alternatives using RoCE — so the cluster behaves as a single enormous machine. The communication between GPUs during training (synchronizing gradients, passing activations between layers) generates intense east-west traffic inside the data center, which is why AI clusters require low-latency, high-bandwidth networking that general enterprise infrastructure was never designed to provide.
- 2012AlexNet, trained on gaming GPUs, wins ImageNet — the GPU-for-AI approach is validated.
- Mid-2010sGPU makers add Tensor Cores, HBM and multi-GPU interconnects aimed squarely at AI.
- 2020sPurpose-built accelerators — TPUs, IPUs, wafer-scale chips — challenge GPU dominance.
Beyond the GPU
The success of the GPU at AI has attracted a wave of purpose-built accelerators — chips designed from the ground up for the matrix-math of neural networks, with no legacy gaming architecture to accommodate. Google's TPUs, Graphcore's IPUs, Cerebras's wafer-scale processors, and a growing field of startups have each taken different architectural bets on how to make AI math faster or more efficient. Some optimize for training, others for inference at the edge. None of them are trying to render a triangle.
What they all share is the fundamental insight the GPU accidentally proved: AI's workload is parallel, regular, and memory-intensive. The chips that win are the ones built around that shape — not the shape of the general-purpose program the computing industry spent five decades optimizing for. The GPU didn't become the engine of AI because anyone planned it that way. It became the engine because, underneath the rendering pipeline and the gaming drivers, it was always solving the same problem.
